Measurements
0.5 mm [0.02""], 0.75 mm [0.03""] and 1.0 mm [0.04""] tip available
Weight
73 g [0.16 lbs]
Special Features
3 pressure springs
White: Forces: 0 - 3N (0 - 0.3 kg), Resolution: 10 g [0.02lbs]
Blue: Forces: 0 - 10N (0 - 1 kg), Resolution: 50 g [0.11lbs]
Red: Forces: 0 - 20N (0 - 2 kg), Resolution: 100 g [0.22lbs]
Measurements
Length: 160 mm [6.30""]
Width: 26 mm [1.02""]
Height: 80 mm [3.15""]
Weight
245 g [0.54 lbs]
Special Features
Blade spacing ranges from 1 mm to 3 mm, depending on model; each having 8 cutting edges
The Proceq ZCT 2160 is particulary suitable for the smallest substrates which are most difficult to access. 1 mm, 2 mm and 3 mm templets are provided.
Measurements
Dimensions 1 mm (0.04"")
template: 82 x 9.5 x 1 mm (3.23 x 0.37 x 0.04"")
Dimensions 2 mm (0.08"")
template: 82 x 14.5 x 1 mm (3.23 x 0.57 x 0.04"")
Dimensions 3 mm (0.12"")
template: 82 x 19.5 x 1 mm (3.23 x 0.77 x 0.04"")
Measuring Area
Minimum size of support
1 mm (0.04"") templet | 12 x 12 mm (0.47 x 0.47"")
2 mm (0.08"") templet | 18 x 18 mm (0.71 x 0.71"")
3 mm (0.12"") templet | 24 x 24 mm (0.94 x 0.94"")
Weight
5.6 to 11.8g (0.20 to 0.42 oz), depending on template in use
Measuring Range
ZWW 2100: 0 μm - 25 μm [0 mil - 0.98 mil]
1 μm (0.04 mil) resolution
ZWW 2101: 0 μm - 50 μm [0 mil - 1.97 mil]
2 μm (0.08 mil) resolution
ZWW 2102: 0 μm - 125 μm [0 mil - 4.92 mil]
5 μm (0.20 mil) resolution
ZWW 2103: 0 μm - 250 μm [0 mil - 9.84 mil]
10 μm (0.39 mil) resolution
ZWW 2104: 0 μm - 500 μm [0 mil - 19.69 mil]
20 μm (0.79 mil) resolution
Weight
165 g [0.36 lbs]
● ZAA 2300-slow Automatic film applicator with:
drawing speed 1 - 99 mm/s (0.04 - 3.9""/s)
resolution 1 mm/s (0.04""/s)
● ZAA 2300-medium Automatic film applicator with:
drawing speed 2.5 - 247.5 mm/s (0.1 - 9.7""/s)
resolution 2.5 mm/s (0.1""/s)
● ZAA 2300-fast Automatic film applicator with:
drawing speed 5 - 495 mm/s (0.2 - 19.5""/s)
resolution 5 mm/s (0.2""/s)
Display
Touchscreen 5.7"" colour TFT (LCD), LED backlight, VGA resolution
Measuring Area
Application length: up to ≈ 400 mm (≈ 15.75"")
Application width: up to 300 mm (11.81"")
Weight
2600.HA: ≈ 24 kg (≈ 52.9 lbs)
glass plate only: 6.4 kg (14.1 lbs)
Battery
Power supply: 100 V - 240 V, 50 Hz - 60 Hz
Operating Temperature
Plates: heatable up to 150°C (302°F)
Ambient conditions for the operation:
Temperature range: 5°C to +45°C
(41 °F to 113 °F)
Relative humidity: 20% to 80%, no condensation
Special Features
Drawing speed: 1 - 500 mm/s (0.04 - 19.69“/s)
Resolution: 1 mm/s (0.04”/s)
▪ Specially designed flexible cutting head with exchangeable cutting tool ensures reproducible cross cuts
▪ Easy to handle and also suitable for untrained users
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
▪ Particularly suitable for the smallest substrates which are most difficult to access, as for example profiles
▪ Easy to handle
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com

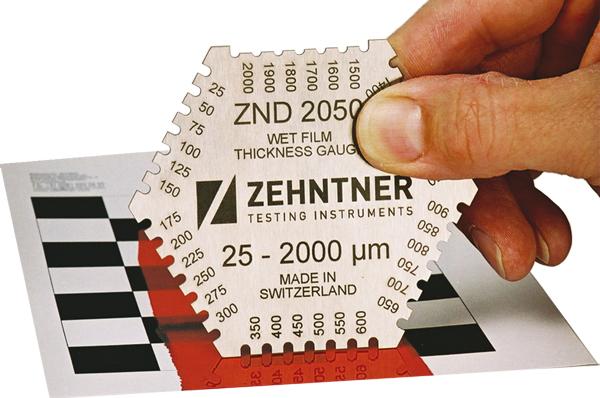

▪ An alternative to ZND 2050 - 2054 Wet Film Thickness Gauges and ZNW 2055 Wet Film Thickness Wheel
▪ Easy to operate and clean
▪ Sturdy and extremely durable
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
▪ Easy to handle
▪ Easy to clean
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
▪ Especially suitable for flexible substrates e.g. paper, foils, cardboard, test charts, textiles, leather etc.; uneveness will be levelled through the applicator
▪ Several layers can be applied successively or close together
▪ Easy to handle
▪ Reliable results
▪ Easy to clean
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Technical specification
▪ The 4-sided applicator frame has the significant advantage that the coating material being applied, is retained within the guide walls, resulting in clean and precise applications
Easy to handle
▪ Reliable results
▪ Easy to clean
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Thanks to its modular construction, the automatic universal unit can be equipped with different kits for carrying out also scrub resistance, washability, crocking as well as scratch and mar resistance tests
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Versions
2600.A ZAA 2600 Automatic Film Applicator with drawing speed 1 - 500 mm/s (0.04 - 19.69“/s), stepless adjustable
2600.HA ZAA 2600 Automatic Film Applicator for heatable plates with drawing speed 1 - 500 mm/s (0.04 - 19.69“/s), stepless adjustable
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Technical specification
▪ Measuring accuracy ± 1 %
▪ Measuring sensor adaption V(λ)
▪ Display LCD, 3 ½ digits
▪ Light source halogen lamp, standard illuminant A
▪ Power supply integrated, rechargeable accumulator
▪ Dimensions (LxWxH) 190 x 53 x 110 mm (7.48 x 2.09 x 4.33“)
▪ Weight 1 kg (2.20 lbs)
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
Pathbreaking with various types of digital communication and analog outputs
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
The GlossTools software opens the gateway to a more efficient and productive quality control: measuring results are transmitted directly to the computer and can be processed immediately.
Technichal specification
▪ Glossmeters ZGM 1110, ZGM 1120 and ZGM 1130
▪ Operating system Windows® 10, Windows® 8, Windows® 7, Windows Vista®, Windows® XP SP2
▪ System requirement memory (RAM) min. 128 MB, 256 MB recommended
▪ Hard disc space min. 60 MB
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
▪ Portable precision glossmeter with smallest dimensions for measurement of all gloss ranges of all surfaces from matt to high gloss, even on very confined surfaces
▪ Latest technology and very easy to use
▪ Versatile measuring and data analysis software “GlossTools” with additional features, free of charge
▪ Useful for the various needs of production and demanding requirements in the laboratory
▪ Factory calibration with calibration standard traceable to an ISO 17025 accredited laboratory
Technical specification
▪ Measuring range 0 - 2‘000 GU
▪ Measuring units GU, %
▪ Repeatability 0 - 199.9 GU: 0.1 GU
200 - 2‘000 GU: 0.1 %
▪ Reproducibility 0 - 199.9 GU: 0.5 GU
200 - 2‘000 GU: 0.4 %
▪ Measuring sensor adaption V(λ)
▪ Interface USB Mini-B
▪ Light source LED
▪ Power supply USB-powered
▪ Calibration traceable to an ISO 17025 accredited laboratory
▪ Operating system Windows® 10, Windows® 8, Windows® 7, Windows Vista®, Windows® XP SP2 or later
Get in touch with us.
Tel : (669) 2384-4664
E-Mail : teamiie@centasiathai.com
▪ A precision milled monoblock optic ensures stable and reliable gloss measurements
▪ Direct access to measurement data in csv-format without requiring software thanks to USB device functionality
▪ Features single, multiple and even continuous scan gloss measurements
▪ Continuous gloss statistics (average, standard deviation, max., min.)
▪ Easy to use multi-language menu guidance
Version
1130.6 ZGM 1130 Glossmeter 60°
1130.26 ZGM 1130 Glossmeter 20°, 60° and reflection haze H
1130.268 ZGM 1130 Glossmeter 20°, 60°, 85° and reflection haze H
